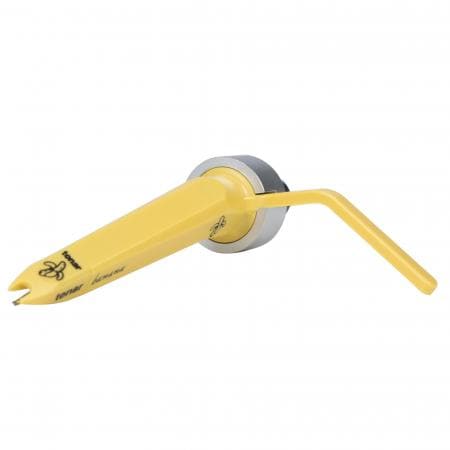

Tonar Banana Concorde DJ Cartridge

Description

Tonar Banana Professional DJ cartridge made by Ortofon
Specification:
Output voltage @ 1000Hz per 5cm/sec: 5mV
Channel separation @ 1000Hz: 20dB
Channel balance @ 1000Hz: 2dB
Dynamic compliance horizontal/vertical: 8/8µm/Mn
Recommended tracking force: 4.0g (40Mn)
Tracking force range: 3.0 – 5.0g (30 -50mN)
Tracking ability @ 315Hz (lateral): 70µm
Vertical tracking angle: 20°
FIM distortion: 1.8%
DC resistance: 600Ω
Recommended load resistance: 47KΩ
Recommended load capacitance: 400pF
Cartridge weight: 16g
Cartridge mounting: SME type removable Head Shell
Replacement stylus: TON-STYBANANA
