Description

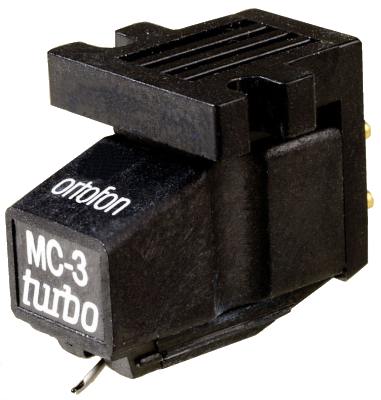

The MC-3 Turbo takes high output moving coil cartridges a step further, with a high polished, nude fine line diamond. The MC-3 Turbo has a 3.3mV output, which is perfect for use with virtually any moving magnet (MM) phono preamps, included inbuilt models. The nude fine line diamond resolves a high level of detail and provides expansive Stereo imaging. Specifications: Output voltage at 1000 Hz, 5cm/sec: 3.3mV Channel balance at 1 kHz: < 1.5 dB Channel separation at 1 kHz: > 24 dB Channel separation at 15 kHz: > 15 dB Frequency range at -3 dB: 20 to 30,000 Hz Frequency response FIM distortion at recommended: 20-20,000 Hz + 4 /- 1 dB Tracking ability at 315Hz at recommended Tracking force: > 70 µm Compliance, dynamic, lateral: 13 µm/mN Stylus Type: Nude Fine Line non-replaceable Stylus tip radius: r/R 8/40 µm Tracking force range: 1.8-2.2 g (18-22 mN) Tracking force recommended: 2 g (20 mN) Tracking angle: 20º Internal impedance, DC resistance: 100Ω Recommended load impedance: 47kΩ /<500pF Cartridge body material: Noryl Colour: Black Cartridge weight: 4.1 g
