Description

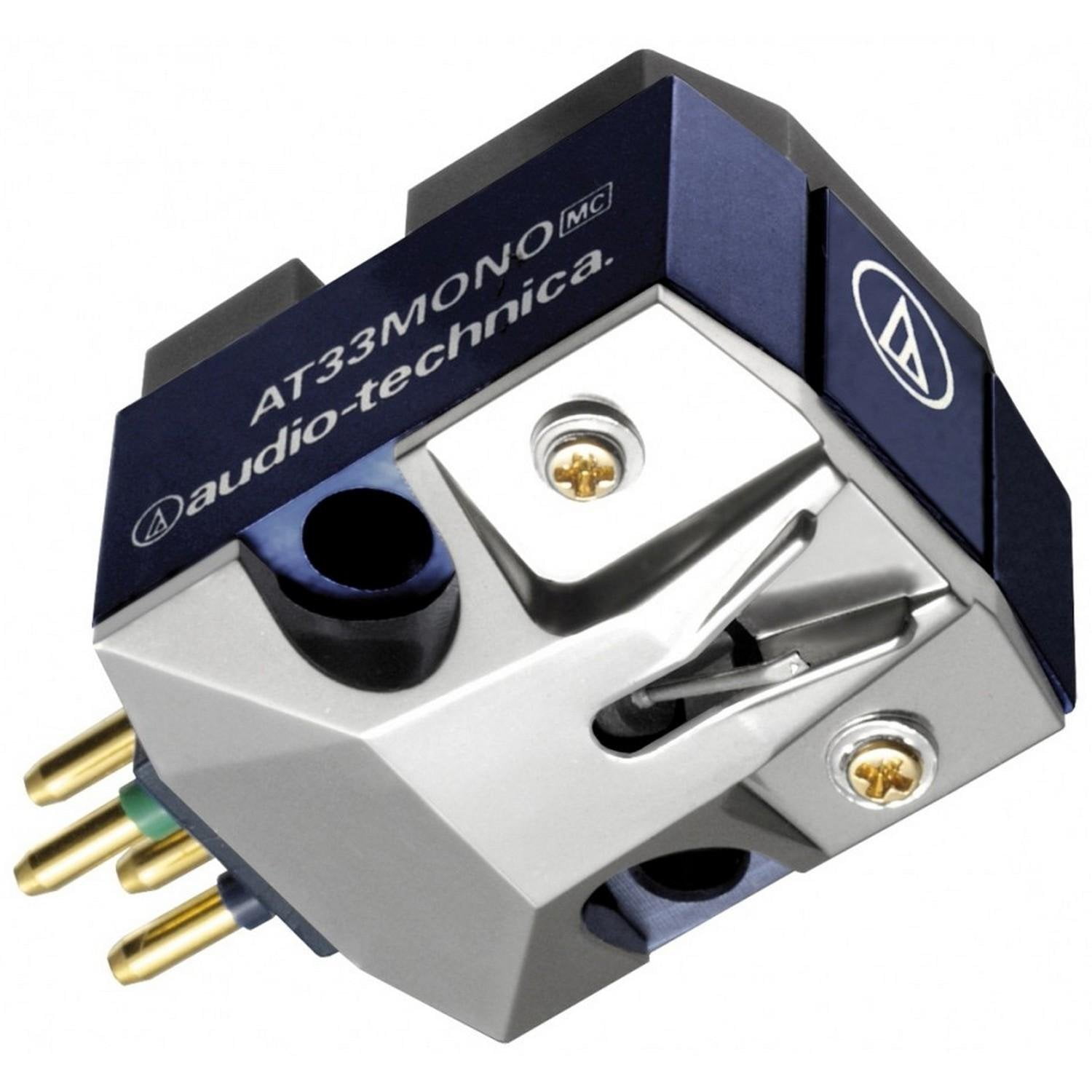

The AT33Mono Moving Coil Cartridge is made specifically for use on mono systems. It has a horizontal coil,and so in principle only generates electricity horizontally. It produces sound to a very high quality because it does not easily pick up unnecessary strain components from distorted or scratched records,producing audio that you could not possibly get from a stereo cartridge. The AT33Mono also has appropriate compliance inn the verticle direction,so will not cause damage to stereo records. Enjoy thos well-known classic mono records of yesteryear with the AT33Mono cartridge.
Mono cartridge compatible with stereo playback systems. Elliptical stylus chip and hard duralumin cantilever. 10Ω middle impedance specification. PCOCC coil prevents crystal gain boundary formation (in transmission direction). Strong body stabilized by a rigid body set-up. “Hanenite” anti-vibration rubber eliminates unnecessary vibrations. High-quality sound / Brass fastening screw. *This model is not compatible with SP records.
Specifications:
Type: MC (Moving Coil) Playback frequency range: 20-20,000Hz Output voltage: 0.35mV (1kHz and 5cm/sec. horizontal signal) Horizontal/vertical output ratio: 30dB (1kHz) Output balance: 1.0dB (1kHz) stylus pressure: 2.3-2.7g (2.5g standard) Coil impedance: 10Ω1kHz DC resistance: 10Ω Load resistance: More than 100Ω (when head amp connected) Coil impedance: 28μH (1kHz) Static compliance: 20×10-6cm/dyne Dynamic compliance: 6×10-6cm/dyne (100Hz) Needle shape: Round needle (0.65mil) Cantilever: Duralumin pipe Vertical tracking angle: 23° Dimensions: H16xW16xD26.5mm Weight: 6.9g Accessories: Non-magnetic screwdriver x1,Washers x2,Protector x1,Cartridge fastening screw 13mm x2,Nut x2,Brush x1,PCOCC lead set x1
